- Power Rating: 1000VA (800W)
- Receptacles: (3) NEMA 5-15R
- Line Cord: 5-ft. (5-15P to C13)
- Chassis: 17.2 x 17.8 x 1.7 in. (1U)
- Weight (approx.): 28 lbs.
- Battery Quantity/Size: (4) 6V 290W
- Battery Run Times: 20 minutes (50% load); 8 minutes (100% load).
Note: Battery run times vary based on condition, age, cycles, and ambient temperature.
- Output Voltage: 120VAC
- Waveform: Pure sine wave
- Efficient operation: Up to 98% (ECO mode)
- Hot swappable battery
- 4-point rackmount rail kit
- 3-year warranty on electronics and battery
- UL
- RoHS
- TAA compliant (UPS only)
- FCC A

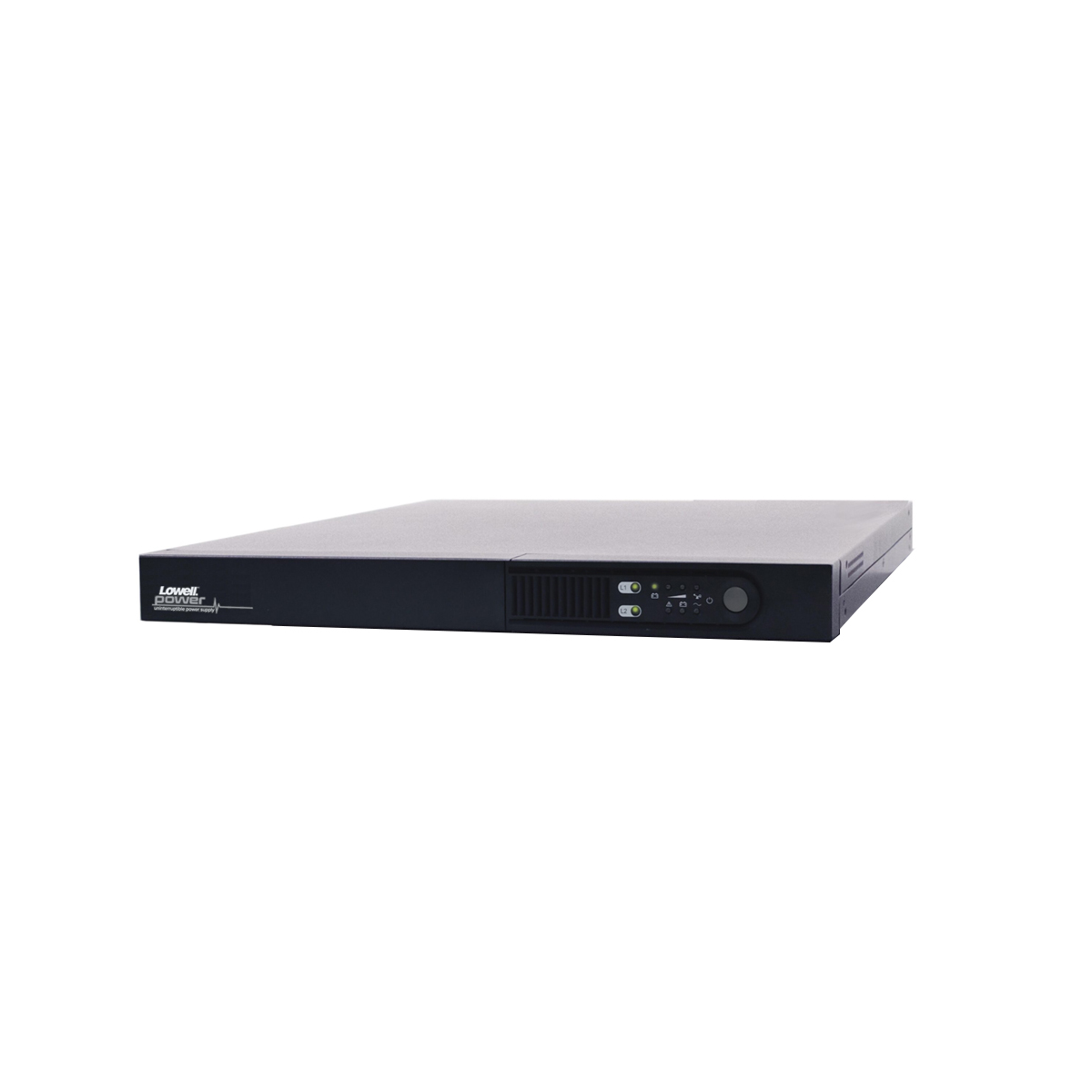

The uninterruptible power supply (UPS) shall be Lowell model UPS9AC-1000, which shall include a 4-point rackmount rail kit. The chassis shall measure 17.2″x 17.8″ x 1.7″. The UPS shall operate on 120VAC/60Hz current. Power rating shall be 1000VA. The unit shall feature 3 NEMA 5-15 receptacles and include a power cord with plug. The UPS shall feature a run time of 20 minutes (half load) or 8 minutes (full load).
- Dry Contact Card: UPS-RELAY
- SNMP Card: UPS-SNMP
- Environmental Sensor: (requires SNMP card) UPS-SNMP-EMP
- 5 Year Extended Warranty (must purchase simultaneously w/UPS): UPS-EW Series
- Expansion Battery Pack (extended run times): UPS-XBP Series
- Maintenance Bypass (corded): UPS-XBDM-20RCD
- Maintenance Bypass (hardwired): UPS-XBDM-H
