10k ohm Potentiometer

Name: 10k ohm Potentiometer
SKU: 10KLVC-RM
Price: 50.48 USD
Availability: InStock

With adhesive scale

$50.48 MSRP

Model 10KLVC-RM

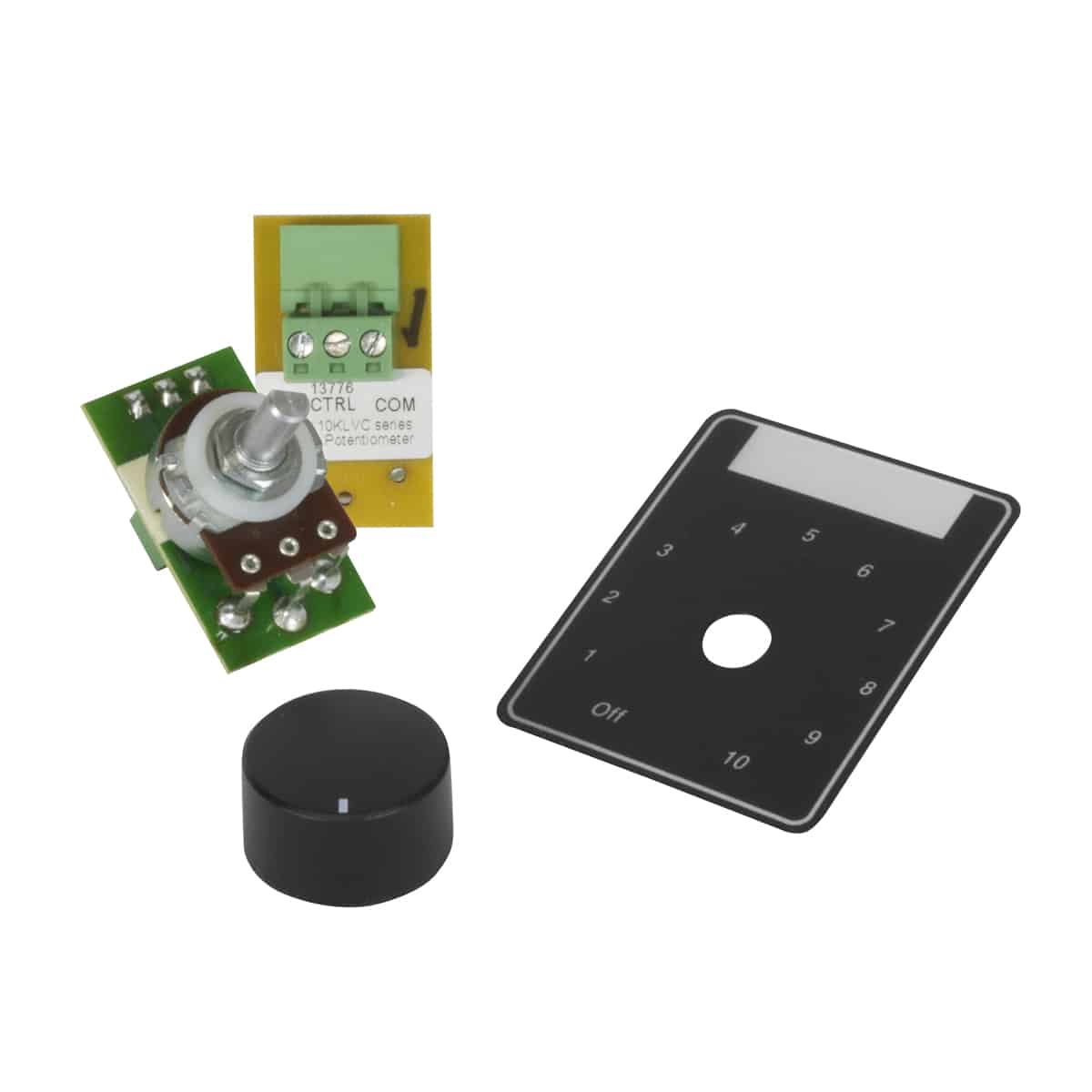

A 10k ohm linear taper control for single-point remote level adjustment of voltage controlled amplifiers (VCA) interfaces directly with three-wire, 0 to 10 volt control inputs typical on VCAs. The 10k ohm potentiometer allows the amplifier’s control voltage to be set or adjusted from a single remote location. Adhesive dial scale includes PocketID where a paper label can be inserted to identify the controls.

Add to Favorites

Compare

Power Rating: 0.5W
Attenuation: Continuous
Use With: VCA control or audio circuit
Activation: Rotary dial
Termination: Phoenix-style
Wire Capacity: 14-gauge
Adhesive label with dial scale and label window

Spec Sheet: 2220-10KLVCRM

Made in the U.S.A. with global components

The potentiometer control shall be Lowell Model No. 10KLVC-RM, which shall be a linear taper style potentiometer with 10,000 (10k) ohm resistance and 1/2W power rating. It shall be compatible with three-wire 0-10 volt control inputs on voltage control amplifiers (by others) for level adjustment from a single remote location. Attenuation shall be continuously variable with stops at minimum and maximum levels. The control shall include a knob, adhesive label (2 in. x 2.5 in.) with dial scale, and plastic window for a label.

LVC8P-ID2: Rackmount panel for attenuator installation (holds up to eight)
